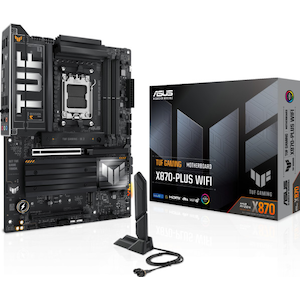

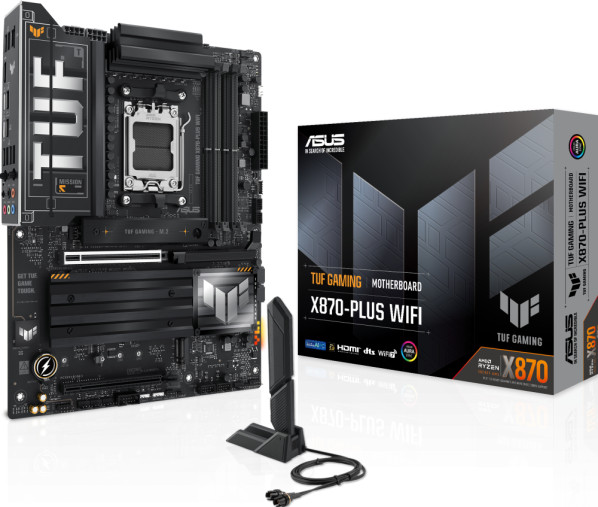

AMD X870 チップセット搭載ATXマザーボード「TUF GAMING X870-PLUS WIFI」 | ASUS｜エイスース | TUFGAMINGX870PLUSWIF

【ご購入後のお問い合わせ先につきまして】
初期不良判断・修理等のお問い合わせにつきまして「CFD ASUSサポート」をご利用ください。
https://www.cfd.co.jp/biz/other/support-asus.html

商品の特長

メーカー保証期間１年

◆堅牢な電源ソリューション
16(80A) + 2(80A) + 1(80A)電源ステージ、8 + 8 PIN ProCool電源コネクタ、Digi+ VRM、8層PCB、堅牢な耐久性と安定性のTUFコンポーネント(チョークとコンデンサ)

◆包括的な冷却
スマートファンProtect、拡大されたVRMヒートシンク、AI Cooling ll、M.2ヒートシンク、PCHヒートシンク、ASUS Fan Xpert 4

◆次世代の接続性
PCIe 5.0スロット、PCIe 5.0 M.2スロット、リアUSB 40Gbps Type-C 、フロントUSB Type-C (20GB) 急速充電対応（30W）

◆オンラインゲームに最適
WIFI 7、2.5Gbイーサネット、TUF LANGuard、ESDガード

◆DIYフレンドリー
プリマウントされた I/O シールド、M.2 Qラッチ、PCIE Q-リリース、Q-Antenna、Q-LED、BIOS FlashBack

◆ASUS AIインテリジェンス
AI NETWORKING II、AI OVERCLOCKING、AI COOLING II

スペック

■　仕　様　■

対応CPU：AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
※Refer to https://www.asus.com/support/download-center/ for CPU support list.
搭載チップセット：AMD X870 Chipset
メインメモリー：
4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM※
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
※Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product
information site or visit https://www.asus.com/support/download-center/.
※Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
グラフィックス機能：
1 x HDMI port※※
2 x USB4 (40Gbps) ports support USB Type-C display outputs※※※
※Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
※※Supports 4K@60Hz as specified in HDMI 2.1.
※※※Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
※※※※VGA resolution support depends on processors' or graphic cards' resolution.
拡張スロット：
AMD Ryzen 9000 & 7000 Series Desktop Processors※
1 x PCIe 5.0 x16 slot (supports x16 mode)※※
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)※※※
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)※※※※
※Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
※※The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
※※※Specifications vary by CPU types.
※※※※The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ機能：
Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports※
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)※※
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)※※※
2 x SATA 6Gb/s ports
※AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
※※The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
※※※The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
Ethernet：1 x Realtek 2.5Gb Ethernet/TUF LANGuard
Wi-Fi：
Wi-Fi 7※
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band※※
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4※※※
※Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
※※Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
※※※The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB機能：
Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)※
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)※※
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
※USB Type-C power delivery output: max. 5V/3A
※※USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
オーディオ機能：
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback※
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
※Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
背面インターフェース：
2 x USB4 (40Gbps) (2 x USB Type-C) ports
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors：
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
特別な機能：
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
- Compatible with PD3.0
Software Features：
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS機能：256 Mb Flash ROM, UEFI AMI BIOS
その他：WOL by PME, PXE
主な付属品：
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide
OS：Windows 11
フォームファクター（サイズW×D）：ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

※仕様及び外観は改良のため予告なく変更される場合がありますので、最新情報はメーカーページ等にてご確認ください。
